smart ROMEN CATCHER LY Jr.

#Road Surface Properties and Conditions Survey System#DX #Surveys and Consulting#Vehicle Lanes

Overview

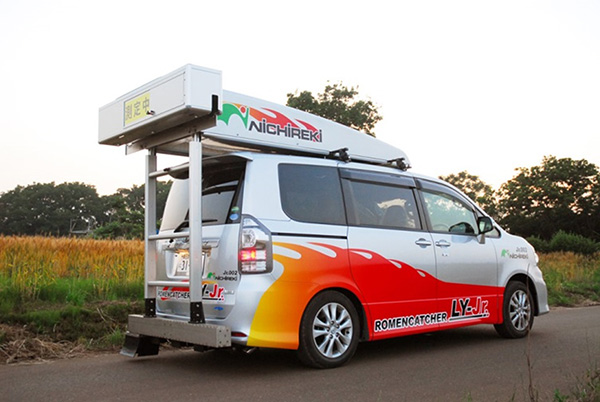

smart ROMEN CATCHER LY Jr. is a road surface condition survey vehicle that passed the performance test for automatic road surface condition measuring equipment and is capable of safely implementing surveys even on narrow roads.

Features

  • Simultaneous acquisition of vertical direction acceleration, road crack imaging, and cross section profile by the survey vehicle
  • Recording of photographs
  • The road surface condition is evaluated indoors using the acquired data
1.Longitudinal irregularities (IRI: International Roughness Index):Visual evaluation of IRI from the vertical acceleration standard deviation and the images.
2. Rutting:Evaluation complying with the “Method using a road surface condition measuring vehicle” described in the “Pavement Surveying and Testing Handbook”.
3. Road cracks:Evaluation complying with the “Method using a road surface condition measuring vehicle” described in the “Pavement Surveying and Testing Handbook”.
4. No. of patches:Counting of the number of patches in the section being evaluated from the images.

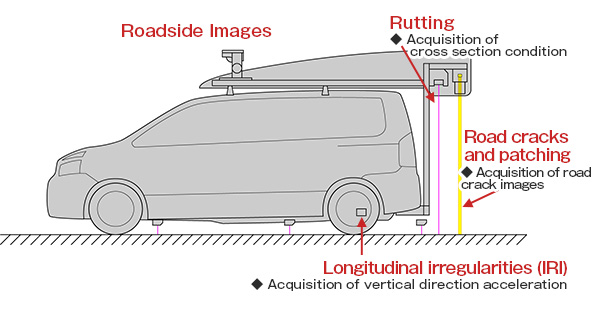

Measuring Image

Measurement Accuracy

Measurement itemAccuracy
Distance measurementWithin ±0.5% of the actual measurement made using a tape
Road crack measurementPossible to recognize cracks that are 1mm or wider
Rutting measurementWithin ±3mm of the measured value of the cross section profile meter
Roughness measurementWithin ±30% of the measured value of the longitudinal profile meter

Additionally, from the survey results, the following types of products can be created.

  • Documentation in tables of road surface conditions※
    ※Supports the description formats (Format A, Format B) in the “Comprehensive Inspection Implementation Outline (Proposed) [Pavement Edition]” of the Ministry of Land, Infrastructure, Transport and Tourism

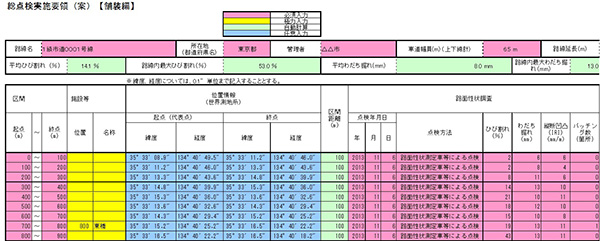

[Format A]

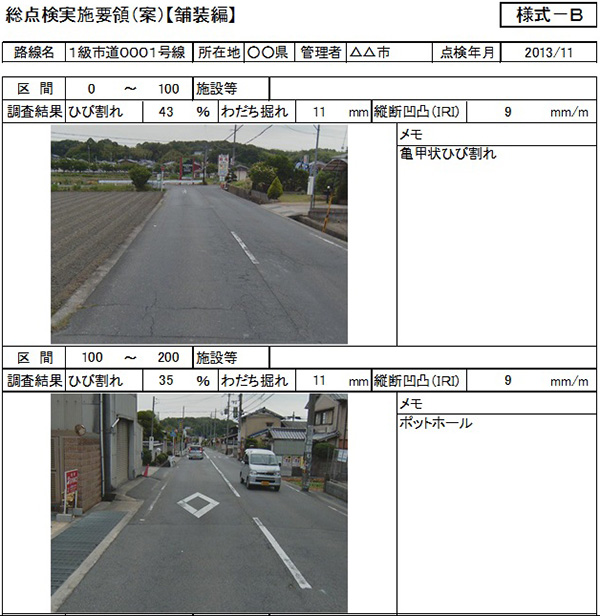

[Format B]
  • Recording of photographs:Recording of photographs: Cloud-based system “PH-MAP.web”

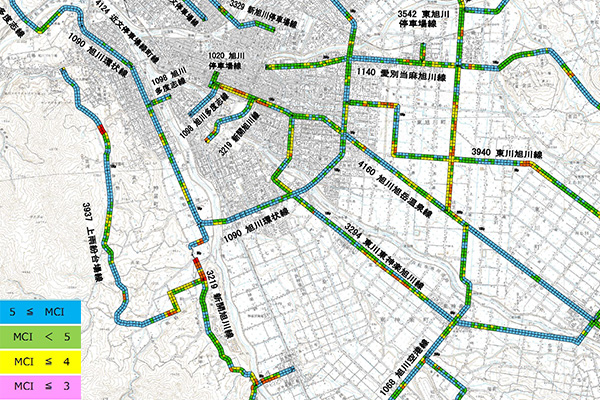

  • Visualization of damage conditions: “Damage Condition Color Map (MCI Color Map)”
